| Technical Data | LWI V FSS 150 W |
|---|---|
| laser safety class | 4 |
| beam source | FSS FullSolidState Fibrelaser, Diodes |
| wavelength | 1070 nm |
| max. pulse energy | 15 Joule |
| max. peak power | 1,5 kW |
| max. average power | 150 W |
| energy adjustment mode | current |
| voltage | 10 - 100 % |
| pulse width | 0,1 - 50 ms /cw |
| pulse frequency | 1-100 hz |
| pulse fill | - |
| PWM mode | 1 - 100 % |
| focal length | 190 mm |
| beam diameter | 100 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, temperature controlled fan |
| cooling option | - |
| electrical supply | 1-phasig, 90-250V, 50/60 hz |
| power consumption | 800 W |
| Dimensions | 120cm x 120cm x 180cm |
| Technical Data | LWI V FSS 300 W |
|---|---|
| laser safety class | 4 |
| beam source | FSS FullSolidState Fibrelaser, Diodes |
| wavelength | 1070 nm |
| max. pulse energy | 30 Joule |
| max. peak power | 3 kW |
| max. average power | 300 W |
| energy adjustment mode | current |
| voltage | 10 - 100 % |
| pulse width | 0,1 - 50 ms /cw |
| pulse frequency | 1-100 hz |
| pulse fill | - |
| PWM mode | 1 - 100 % |
| focal length | 190 mm |
| beam diameter | 100 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, temperature controlled fan |
| cooling option | - |
| electrical supply | 1 Phase , 90-250V, 50/60 hz |
| power consumption | 1,2 kW |
| Dimensions | 120cm x 120cm x 180cm |
| Technical Data | LWI V FSS 450 W |
|---|---|
| laser safety class | 4 |
| beam source | FSS FullSolidState Fibrelaser, Diodes |
| wavelength | 1070 nm |
| max. pulse energy | 45 Joule |
| max. peak power | 4,5 kW |
| max. average power | 450 W |
| energy adjustment mode | current |
| voltage | 10 - 100 % |
| pulse width | 0,1 - 50 ms /cw |
| pulse frequency | 1-100 hz |
| pulse fill | - |
| PWM mode | - |
| focal length | 190 mm |
| beam diameter | 100 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, temperature controlled fan |
| cooling option | - |
| electrical supply | 1 Phase , 90-250V, 50/60 hz |
| power consumption | 2,5 kW |
| Dimensions | 120cm x 120cm x 180cm |
| Technical Data | LWI V FSS 600W |
|---|---|
| laser safety class | 4 |
| beam source | FSS FullSolidState Fibrelaser, Diodes |
| wavelength | 1070 nm |
| max. pulse energy | 60 Joule |
| max. peak power | 6 kW |
| max. average power | 600 W |
| energy adjustment mode | current |
| voltage | 10 - 100 % |
| pulse width | 0,1 - 50 ms /cw |
| pulse frequency | 1-100 hz |
| pulse fill | |
| PWM mode | |
| focal length | 190 mm (120 mm, 300 mm) |
| beam diameter | 100 µm - 2mm, motorized beam-expander |
| microscope | Leica binocular, oculars magnification 20x |
| illumination of workplace | dual LED cold-light, switchable |
| parameter settings memory | 50 settings, individual named |
| energy measurement system | integrated |
| controller | multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages |
| interface | RS232, CAN-Bus |
| shielding gas supply | flexible nozzle, adjustable gas delay |
| cooling system | integrated, closed, temperature controlled fan |
| cooling option | |
| electrical supply | 1 Phase , 90-250V, 50/60 hz |
| power consumption | 2,5 kW |
| Dimensions | 120cm x 120cm x 180cm |

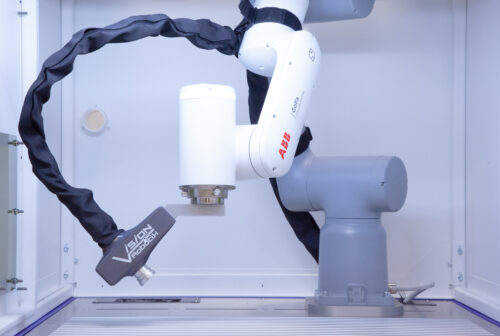

The small laser head enables contactless welding even in hard-to-reach places
Welding programs can be loaded and executed intuitively and after a short instruction.
Extraction and protective gas supply are optionally available and are offered head-mounted.
