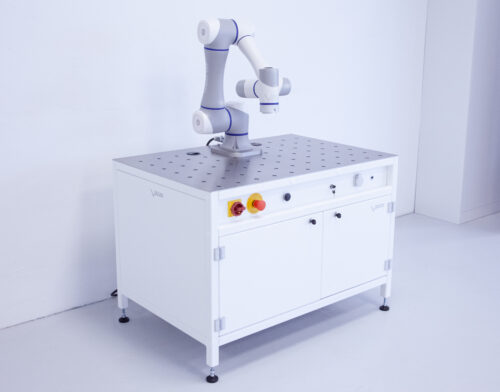

Dobot training station

Robotics education and training

The new “Dobot training station” was designed specifically for use in education and, in combination with the Robokind Foundation’s teacher training offerings, enables a quick introduction to robotics teaching.

The content provided as part of the training documents has been created in a non-age-specific manner and builds on each other depending on the progress of the teaching. Simple and safe use and understanding of robotics: this is our goal. However, this knowledge should already be imparted at school; the basic knowledge should already be learned here, which can be expanded further later.

The training station forms an excellent basis for school training. They are safe as collaborative robots, easy to use and quick to learn. Optimal conditions for training different age groups.

System structure:

– Stable steel welded frame (powder-coated) with adjustable machine feet (optional industrial castors)

– Powder-coated steel side panels

– two lockable cabinet areas for the safe storage of application plates and for accommodating the electrical system control

– Drawer elements with smooth-running telescopic rails

– Brushed stainless steel surface plate with mounting points for application plates and robot base


Connections (extended):

– 230V plug with 3m connecting cable

– Ethernet CAT6

– 230V socket in front panel



– Key switch

– Mushroom push button

– Emergency stop button

– Main switch

    Warning: Invalid argument supplied for foreach() in /mnt/web216/a1/79/5337379/htdocs/main/wp-content/themes/vision/single-product.php on line 135


Technical Data Dobot CR5
axes 6
Payload 5 kg
Working Radius 1096 mm
Maximum Speed of TCP 3 m/s
Repeatability ±0.02 mm
Communication TCP/IP, Modbus, Wi-Fi, 16 DI/DO/AI, EtherCAT
IP Rating IP54, Control Box IP20 (IP66 available upon choice)
Temperature 0° ~ 45° C
camera optional
certifications (CE), IS013849 PLd, TS 15066, NRTL, UL, FCC, CR, KCS, RCM
programming Hand-Held Teach Pendant, APP, Browser-UI, Blockly, Script
weight robot 25 kg

Stainless steel worktop

The sturdy stainless steel worktop allows application plates to be placed quickly and safely

Work materials safely stowed away

Two lockable drawers make it easier to store the application plates even during transport
