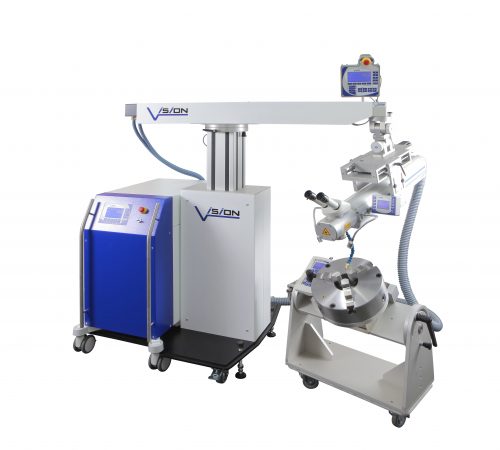

LWI V MobileFlexx

When flexibility counts…

If you want to be prepared for everything, the Mobile Flexx should
be with you.

All functions included in our workstations as Unixx III
or T-base are available here too. So you have full microprocessor
control for all movements and the full synchronization of lasers and
movements.

Even teach in, marking and 3- PCD are included in this unit.

Equally to all of our workstations, the 4 axes can be upgraded to be used with
a high precision rotation stage or even a wire feeder.

Together with the strong platform, the long distance motorized X axis allows for
working on molds of size 2000 x 2000 mm.

So it doesn’t matter whether you work inside the shop on a table or outside on huge molds

– the Mobile Flexx will be the professional solution to get your job done.

Yag 300
Yag 200
Yag 150
Yag 120
Teach in

Enables the handling of complicated geometries in four axis without complex programming. A small number of support points are hit once on the contour of the work piece in advance. The user can subsequently move the programmed welding line forward and backwards using the joystick and can also shift its position by offsetting the start point.
Schutzgas

Programmable shielding gas post-flooding

In order to eliminate the oxidation of the welded joint directly after it has been welded, the times during which the shielding gas ist still conducted on the welded joint following the welding can be individually set.
PWM

In the lower power range, which depends upon high stability, traditional lasers are inclinined toward a low „pulse to pulse stability“ and thus to a non-uniform welding result. The Pulse Width Modulation (PWM) gives a vastly more fine and stable coordination, as the internal energy supply here works in the area of the optimal output.
Pulse shaping

Free pulse shaping enables the setting and saving of all possible variations in the pulse process. Materials with different thermal coefficients of expansion thus show a clearly better welding behaviour - your laser´s area of application thus expands.
pulse distance synchronization

Provides a constant pulse overlapping through the dynamic synchronization of the pulse trigger with the axis movement. PDS ensures replicable welding results with different speeds and consistent, homogenous weld joints in all movement situations. Therefore, a higher operating speed can be reached.
on axis light

This allows you to see into deep crevices or holes which would be in darkness if lateral illumination were used. The illumination comes alongside the optical beam and always illuminates accurately from above.
On axis gas

On-axis shielding gas supply

A reliable on-axis shielding gas supply enables perfect welding even with highly-sensitive materials, such as titanium, for example.

The welded joint is always flooded with shielding gas under 90 degrees. This prevents the sort of shadow effects and swirling which occurs when a lateral gas supply is used.
Rotation Axis

Specially developed turning units increase the user value of your workstation. They incorporate all functions of CAN-Step control, available at the touch of a button, including pulse synchronization and „Teach in“ programming.

Additional features: • Swivel-mounted • Free implementation up to Ø40 mm • different chuck types, chucking range up to Ø 160 mm.
Display

Large display with backlighting

The large backlit display provides the user with a direct view of all the important operating parameters. Adjustment limits are visualized.

The adjustment of the parameters themselves takes place via the work chamber´s control elements.

Specifications

Technical Data	LWI V Nd:YAG 120 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	120 W
energy adjustment mode	voltage or PWM mode
voltage	160-500V
pulse width	1-20 ms
pulse frequency	1-20 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, water/air heat-exchanger, temperature controlled fan
cooling option	external cooler optional, integrated bypass-controller
electrical supply	3 phases, 400V /50 hz
power consumption	4 kW
dimensions	1487mm x 995mm x 790mm

Technical Data	LWI V Nd:YAG 150 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	150 W
energy adjustment mode	voltage or PWM mode
voltage	160-500V
pulse width	1-20 ms
pulse frequency	1-20 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, closed, water/air heat-exchanger, temperature controlled fan
cooling option	external cooler optional, integrated bypass-controller
electrical supply	3 phases, 400V /50 hz
power consumption	4 kW
dimensions	1487mm x 995mm x 790mm

Technical Data	LWI V Nd:YAG 200 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	200 W
energy adjustment mode	voltage or PWM mode
voltage	200-500V
pulse width	1-30 ms
pulse frequency	1-30 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, water/water heat-exchanger, external cooling required
cooling option	external cooling required
electrical supply	3 phases, 400V /50 hz
power consumption	4 kW
dimensions	1487mm x 995mm x 790mm

Technical Data	LWI V Nd:YAG 300 W
laser safety class	4
beam source	Nd:YAG, flashlamp, pulsed
wavelength	1064 nm
max. pulse energy	70 joule
max. peak power	17 kW
max. average power	300 W
energy adjustment mode	voltage or PWM mode
voltage	200-700V
pulse width	1-30 ms
pulse frequency	1-30 hz
pulse fill	10 - 100 %
PWM mode	1 - 100 %
focal length	190 mm
beam diameter	200 µm - 2mm, motorized beam-expander
microscope	Leica binocular, oculars magnification 20x
illumination of workplace	dual LED cold-light, switchable
parameter settings memory	50 settings, individual named
energy measurement system	integrated
controller	multi-controller-system, self-diagnostic-system, plaintext for maintenance and status messages
interface	RS232, CAN-Bus
shielding gas supply	flexible nozzle, adjustable gas delay
cooling system	integrated, water/water heat-exchanger, external cooling required
cooling option	external cooling required
electrical supply	3 phases, 400V /50 hz
power consumption	9 kW
dimensions	1487mm x 995mm x 790mm

CAN-Step: The intelligent axis control

Precisely controls axis movements. This extends manual welding by its sophisticated automatic and programable functions. Touchscreen and Joystick terminals directly in your workspace provide a unique, simple control concept. Thanks to the completely integrated hardware, a separate computer is not needed.

PDS – Pulse Distance Synchronization

Enables the handling of complicated geometries in four axis without complex programming. A small number of support points are hit once on the contour of the work piece in advance. The user can subsequently move the programmed welding line forward and backward using the joystick and can also shift its position by offsetting the start point.

„Teach in“ programming

PCD – 3 Point Cycle Definition

You can process circular type contours by using the PCD function with the XY axis. The circular path is precisely defined through the teaching of only three support points. You do not need to know the center or the diameter; the position on the work piece is optional. You can move along the programmed course either forward or backward by using the joystick.

combinable with a rotating device

Specially developed turning units increase the user value of your workstation. They incorporate all functions of CAN-Step control, available at the touch of a button, including pulse synchronization and „Teach in“ programming. Additional features: • Swivel-mounted • Free implementation up to Ø40 mm • different chuck types, chucking range up to Ø 160 mm.
