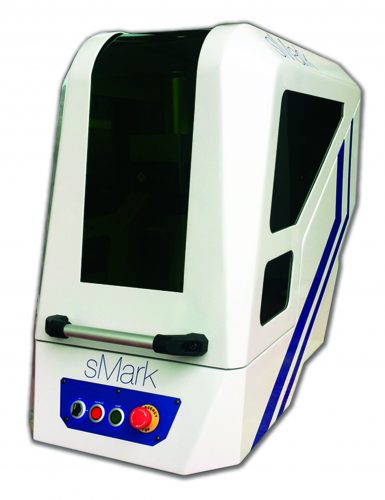

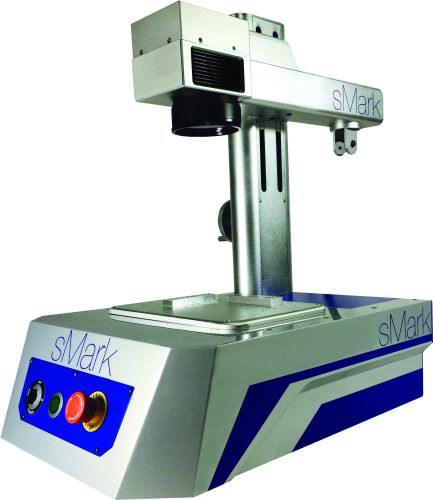

Laser marking system sMark

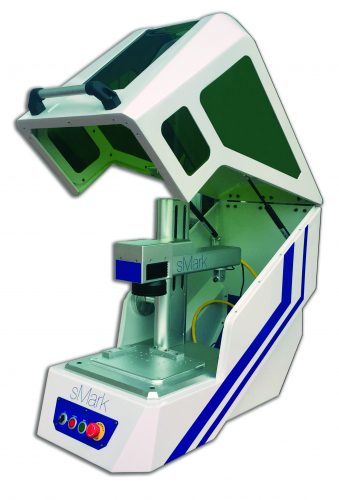

smark kabin_vision

A great value solution to get started

A great value solution to get started

The new sMark is the perfect low-price laser marker – an ideal introduction to laser marking, suitable for the manual marking of small workpieces and tools.

The 20W fibre laser in the standard product can deal with all jobs from laser marking to laser precision cutting.

The sMark comes ready to use – operation of the pre-installed software is self-explanatory and intuitive.

Highlights

Specifications

Technical Data sMark 20W
Laserquelle Yb:Fiber
Ausgangsleistung 20W
Wellenlänge 1065 nm
Fokuslinse 160 mm
Markierfeld 110 mm x 110 mm
Kühlung lüftgekühlt
Achse manuelle Z-Achse integriert
Gewicht 45 kg
Anschluss 230 V, 50/60 Hz
Betriebstemperatur 15°C - 35°C
Luftfeuchtigkeit 20-95%
Software sMark
Dateitypen PLT, DXF, TIFF, JPG, BMP, EZM, DWG
Betriebssystem Windows 7 Prof
Arbeitsspeicher 2 GB
Festplatte 64 GB
Bildschirm 15,6 Zoll Farb-LCD
Schnittstellen RS232, USB 2.0, Ethernet
Dreheinheit optional
Dimensions 570 x 440 x 350 mm

A great value solution to get started

Laser marking is the targeted use of laser technology to mark surfaces. The advantages of laser marking are contactless operation and great flexibility in terms of marking content, the method of marking and the materials to be marked.

SHOW

Laser marking

Laser marking is the targeted use of laser technology to mark surfaces. The advantages of laser marking are contactless operation and great flexibility in terms of marking content, the method of marking and the materials to be marked.

SHOW

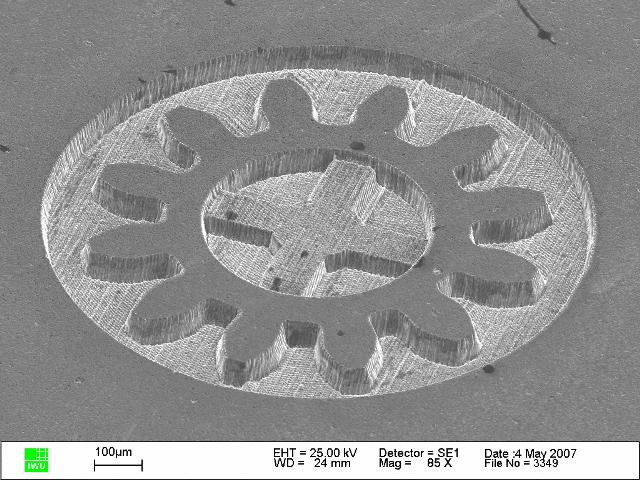

Engraving

The targeted removal of layers of material or roughening of the surface is known as engraving. A contrast to the rest of the surface is created by changing the texture of specific areas. Almost all materials can be engraved provided the right type of laser technology is used. A range of different effects can be created on the various different materials. The engraving depth and surface quality can be defined extremely accurately with the right laser parameters.
